Welcome to ZisWorks

ZisWorks is an electronics design company focusing on displays and PC gaming equipment.

Our newest product, the x28 display, is the first avialable 4k@120Hz display. Additionally, it offers 1080p@240Hz, 720p@300Hz, and 540p@480Hz. 28" TN and 39" MVA flavors are avaialble. With an opensource flexible backlight driver with high-frequency pwm, pwm-free, strobe, and scanning modes, it is an experimenter's dream. In true ZWS spirit, all parts are individually purchasable for labratory use :)

Products

Here you can see all the cool stuff that we've been working on.

Contact us or visit the shop for purchases.

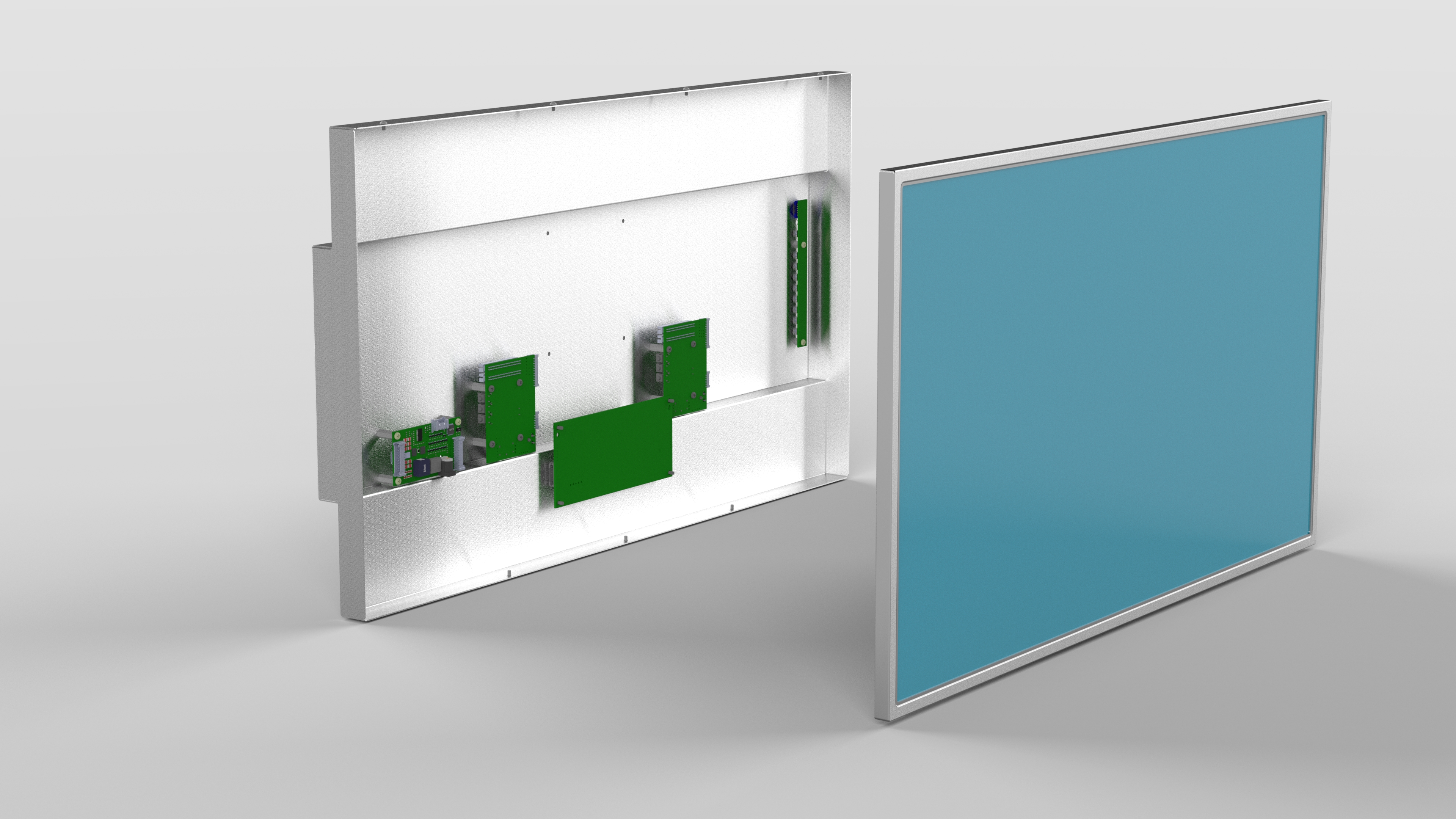

Complete 4k120Hz monitor

Complete 28" 1ms TN type 4k120Hz monitor.

Features:

Single or dual input DP1.2

4k@120Hz, 1080p@240Hz, 720p@300Hz, and 540p@480Hz supported modes

Industrial design style

6, 8, or 10 bit per component input (RGB 4:4:4)

Edid management and redetection through user buttons.

High-frequency PWM and pwm-free dimming modes.

Strobing and scanning backlight modes for improved motion clarity.

No-latency, integer-scaling solution is ideal for responsiveness

100x100mm vesa mount pattern (no stand included).

Check the FAQ for commonly asked and answered questions.

Status: ORDERABLE

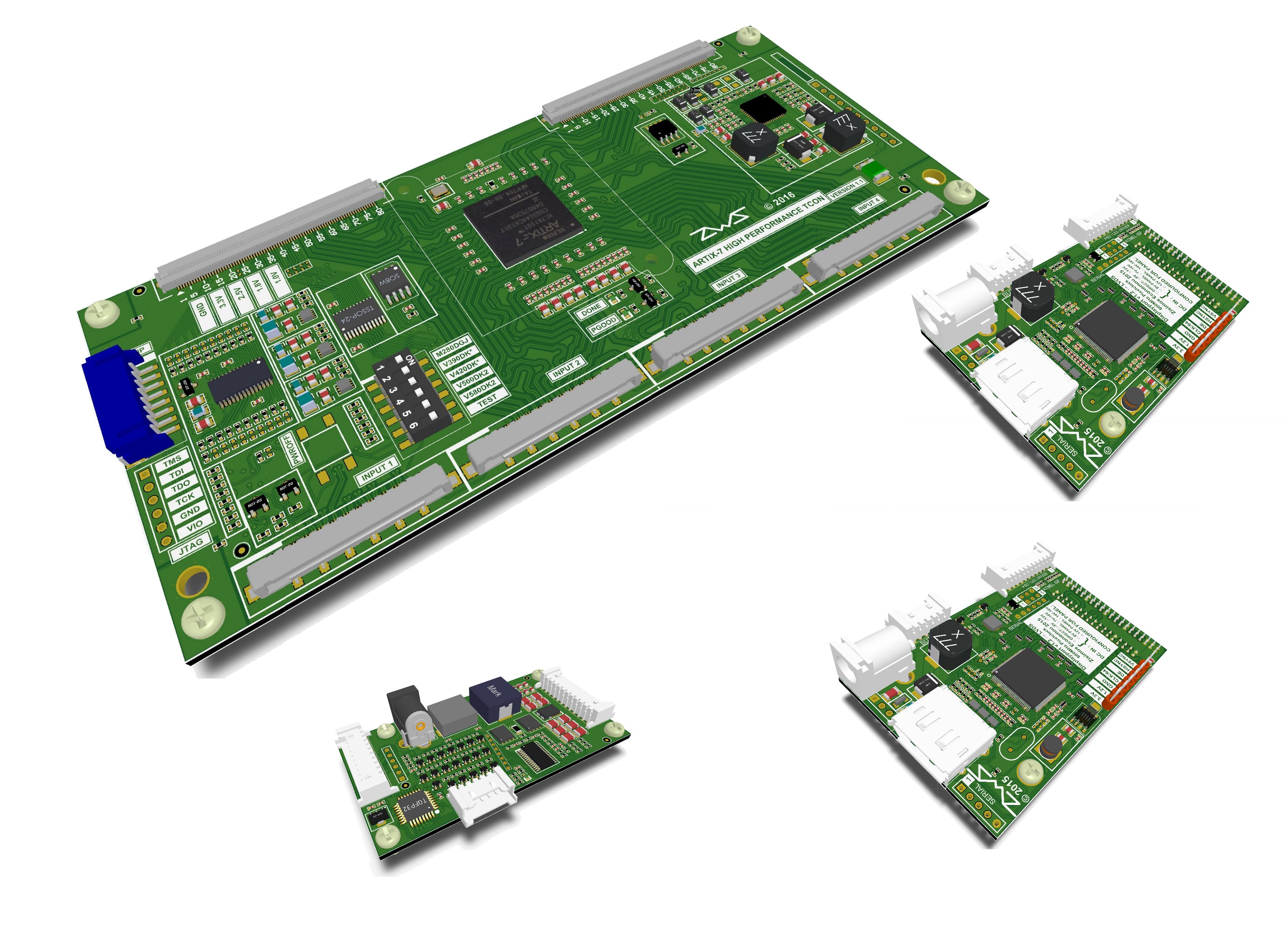

39" 4k120Hz monitor kit

Upgrade kit for SE39UY04 or bare V390DK1-LS1 panel.

Features:

Upgrades an exisitng display with cutting-edge capabilities.

4k@120Hz, 1080p@240Hz, 720p@300Hz, and 540p@480Hz supported modes

Industrial open-frame design style

Single or dual input DP1.2

6, 8, or 10 bit per component input (RGB 4:4:4)

Edid management and redetection through user buttons.

High-frequency PWM and pwm-free dimming modes.

Strobing and scanning backlight modes for improved motion clarity.

No-latency, integer-scaling solution is ideal for responsiveness

Existing AC/DC supply may be reused.

Entire kit mounts to the 200x200mm vesa mount pattern of the panel housing.

Mounting plate provides a 100x100mm vesa mount pattern(no stand included).

Check the FAQ for commonly asked and answered questions.

Status: ORDERABLE

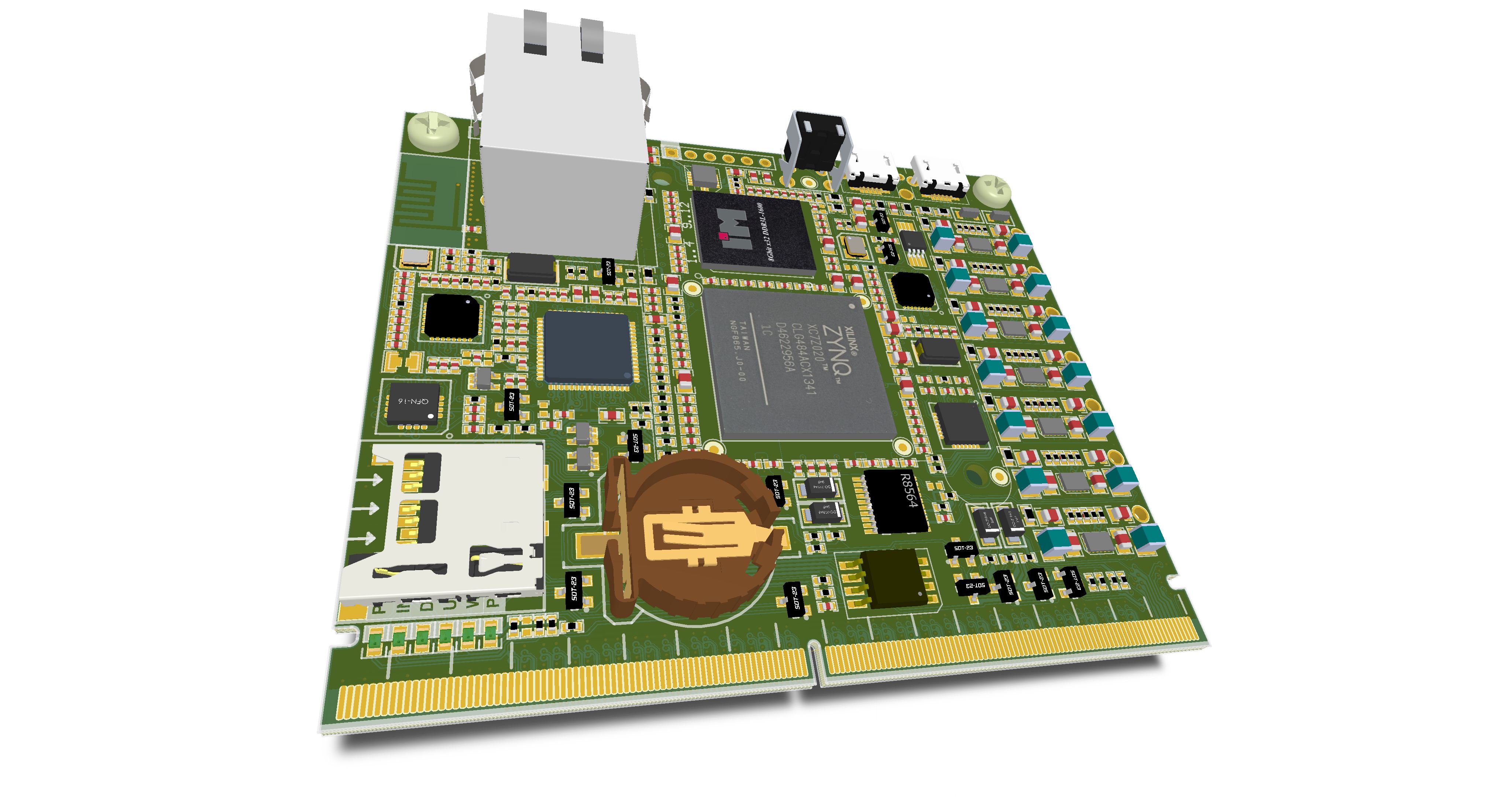

zis7020

The zis7020 module is a dense system-on-board using the zynq 7020 fpga from Xilinx.

Specifications:

70mm * 82mm 8 Layer PCB

Zynq 7020 FPGA with 85K logic cells, 4.9Mb block ram, 220 DSP slices

Zynq 7020 dual ARM A9 cores at 866MHz, 512KB L2 cache, 256KB L3 cache

1GB DDR3-1333 attached to the ARM cores with a 32bit bus

Gigabit Ethernet

802.11n WIFI

USB host/device port

USB uart port

SD-card

QuadSPI flash

Realtime clock with battery

JTAG header (pinout for Xilinx-approved Digilent USB-JTAG dongle)

Features:

No jumpers.

Usable as standalone board or module in a baseboard.

All I/Os routed to the module are length-matched to within +/- 2mil including the fpga on-package delay.

I/O bank power supplies track/match (within safe limits) two I/O pins for external I/O voltage setting.

Mating connector low-cost, hand-solderable, and adequate for 4-layer baseboard use.

Boots linux (Linaro distribution, essentially ARM version of Ubuntu) out of the box.

Detailed 3D model and schematic available for customers.

Design service offered for baseboards. Contact us with your requirements.

Status: ON-HOLD. First prototype has been tested successfully, V2.0 (main change: add wifi) is on-hold.

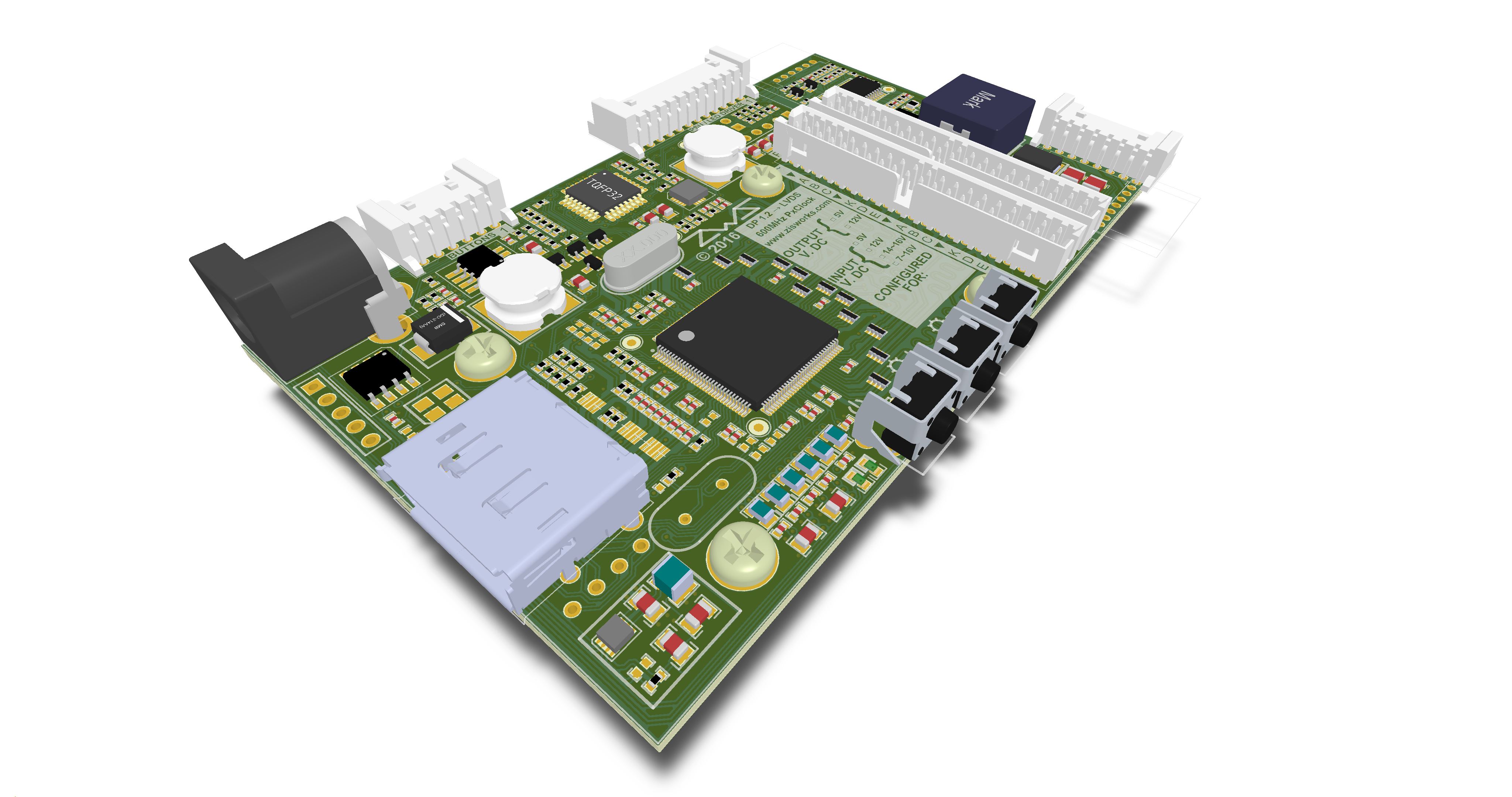

Displayport 1.2 to LVDS

This board converts standard Displayport 1.2 interface signals to LVDS ones.

Features:

Usable as standalone LCD controller or as FPGA input module.

Up to 600MHz pixelclock by specification

6, 8, or 10 bit per component input

Microcontroller handles EDIDs, power sequence, buttons, and backlight.

Strobing mode supported for increased motion clarity.

No-latency, no-scaling solution is ideal for gamers and fpga input

Pin-compatibile with dvi2lvds module.

Status: ORDERABLE

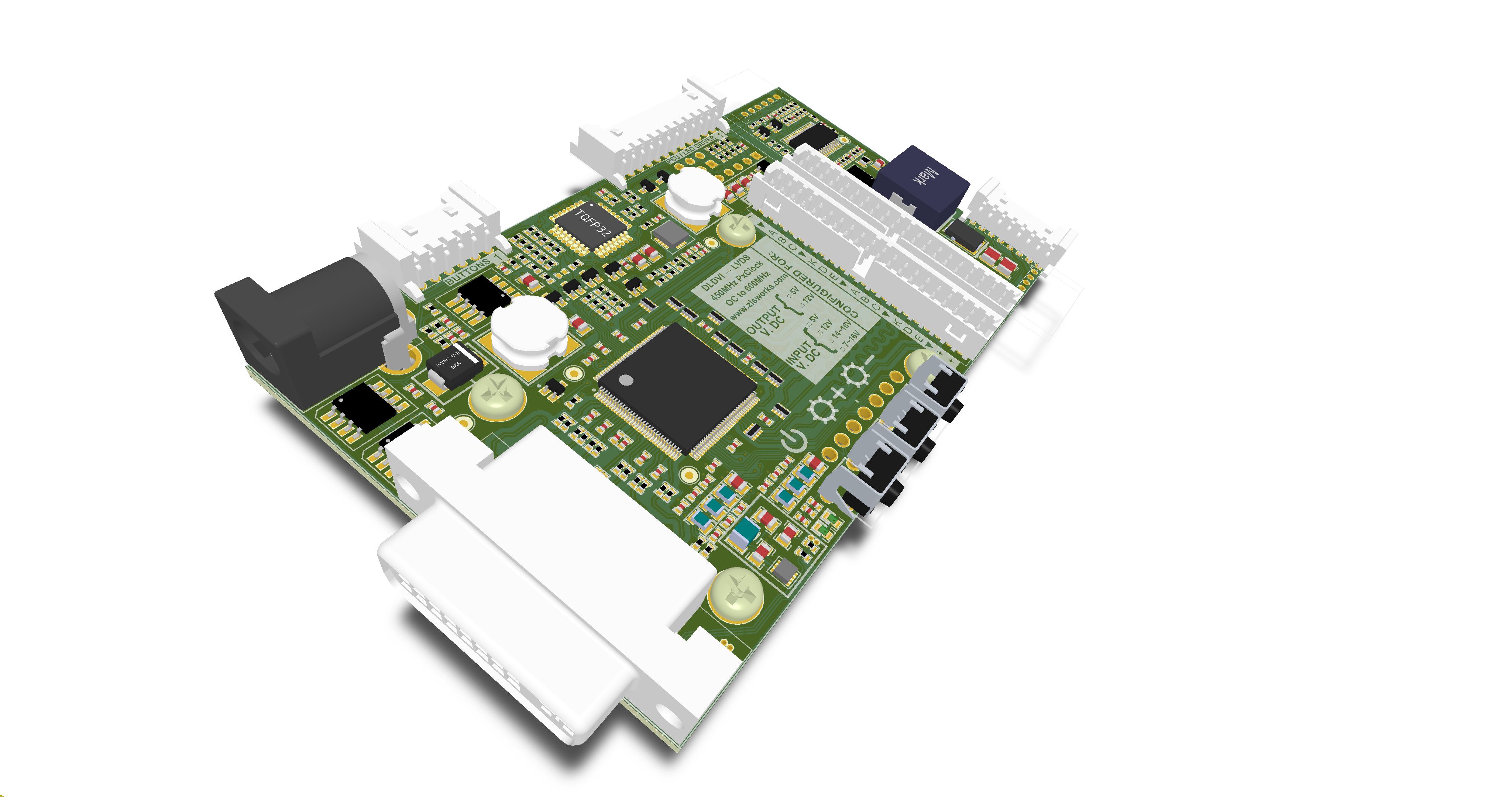

DVI @ 450-650MHz to LVDS

This board converts standard DVI interface signals to LVDS ones.

Features:

Usable as standalone LCD controller or as FPGA input module.

Supports 1080p at 240Hz!

24BPP video input at up to 450MHz pixelclock by specification

24BPP video input at up to 650MHz pixelclock by internal testing

Microcontroller handles EDIDs, power sequence, buttons, and backlight.

Strobing mode supported for increased motion clarity.

No-latency, no-scaling solution is ideal for gamers and fpga input

Pin-compatibile with dp2lvds module (note: no 10bpc support).

(note: maximum horizontal resolution is 2560px).

Status: end of life, limited stock

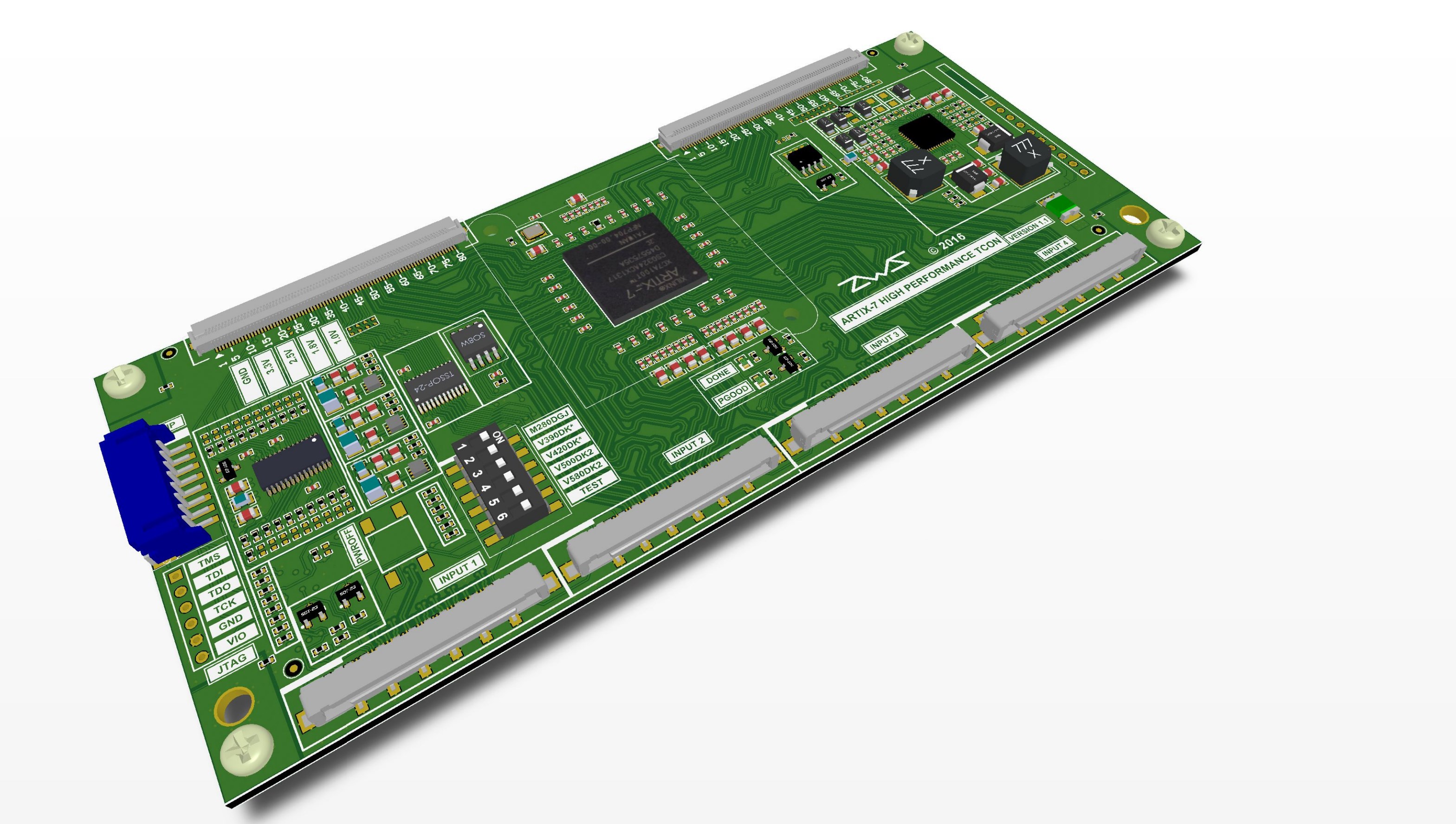

High performance 4k@120Hz TCON

This board enables high-performance operation of M280DGJ and V390DK1 LCD panels.

Features:

4k@120Hz, 1080p@240Hz, 720p@300Hz, 540p@480Hz

Dual 4ch LVDS inputs

Based on Xilinx XC7A35T FPGA

High input skew tolerances

10bpc input, FRC to 8bpc to panel

Dip-switch selects panel

Firmware controlled voltages

Automatic left/right frame realignment (within 3 lines).

Frame sync output for use with the ZWS smart backlight driver

Status: ORDERABLE

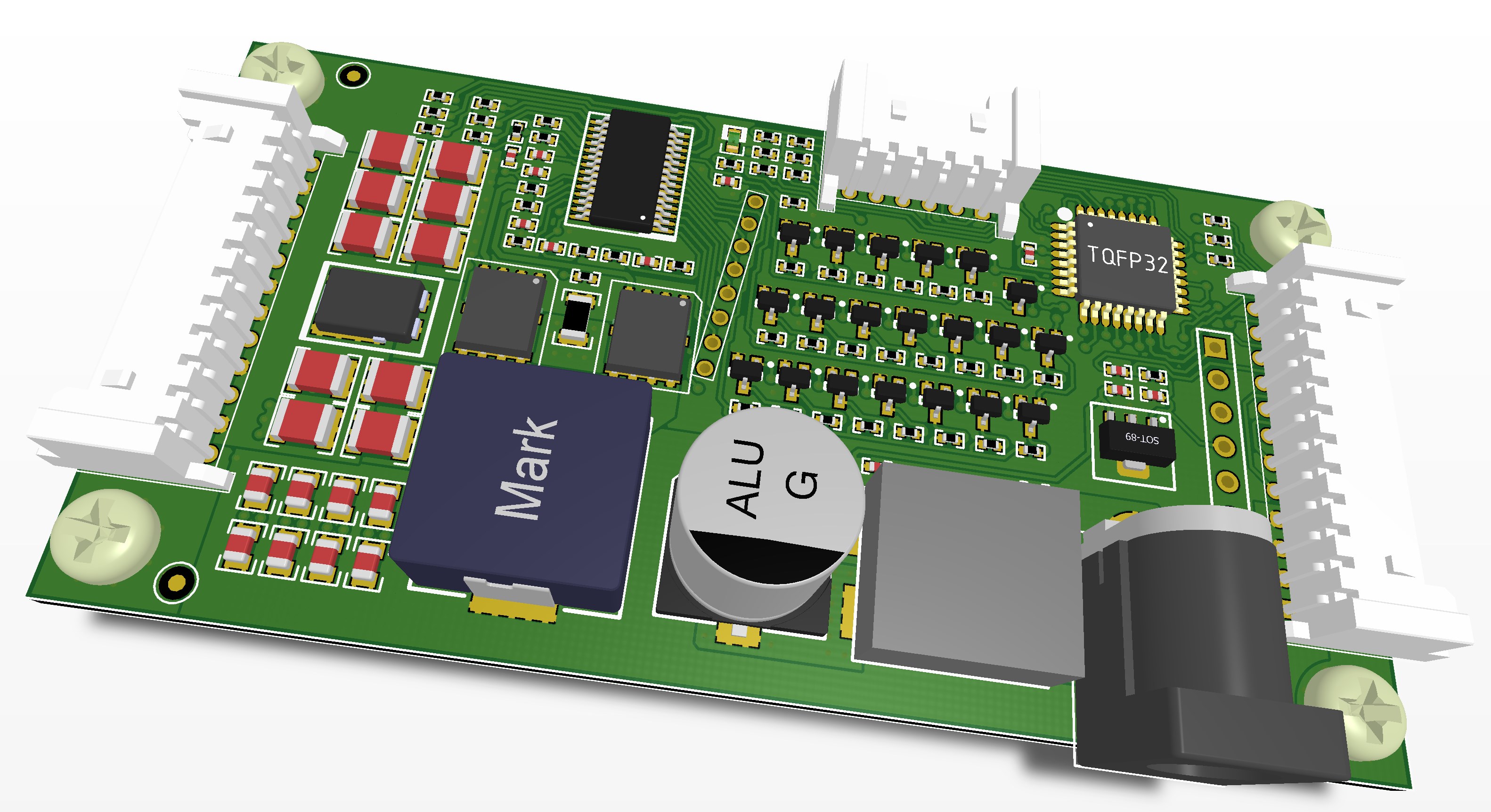

ZWS smart backlight driver

This board is a fully programmable backlight driver.

Features:

Open-source firmware on ATMEGA328.

Texas Insturments TPS61196 LED driver

12~30VDC input

Up to 60V output.

Up to six strings output.

Software-controlled output current.

Software-controlled per-string pulse control.

Up to 350mA pulse per string.

Up to 1.2A continuious output current

Debug header for pulse synchronization analysis

Various safety mechanisms

Status: ORDERABLE

Files available for download:

If you didn't find what was expected here, please contact ZWS.

Our Services

Custom panel support service

Adding DP2LVDS support for custom panels with dp2lvds interface modules is available. Contact us with your requirements for a quote.

Board design service

Board design service for zis7020 fpga modules is available. Contact us with your connectivity requirements and phyiscal constraints for a quote.

Contact

If preferred, contact via phone at (412)294-8086 or direct email: zis@zisworks.com

Please contact for any orders or design service quotes. All inquiries will be read by a human being.

Kit Frequenty Asked Questions

4k120Hz diplay FAQ

Can this drive panel X?

If panel X is M280DGJ or V390DK1-LS1 then yes, otherwise no.

What is image quality like?

Image quality in the 4k modes is basically the same as any other monitor using this panel (only one 28" 4k panel was mass-produced)

Image quality in the fast modes is very minorly degraded, but still good overall.

Are lower resolutions fuzzy??

No, integer scaling is used, so the display is always sharp. Subpixel-aware rendering (truetype fonts) do not have the desired visual effect and should be disabled.

Does 10bpc require lower refresh rates?

No, 10bpc is supported without reducing refresh rates, including 4k120Hz.

Are both DP inputs needed?

Both DP inputs are needed for the 4k120Hz mode. 4k60, 1080p240, 720p300, and 540p480 all only require one DP input.

What is the highest resolution 120Hz that one DP can handle

2160*2160@120Hz.

What is the highest refresh rate at 4k that one DP can handle

60Hz.

What's the deal with chroma subsampling and display stream compression?

Neither scheme is used, 30bpp in the RGB colorspace. Chroma subsampling (often labled as 4:2:2 or 4:2:0) does not apply to the RGB colorspace

Can it be overclocked?

Not really, the TCON is already pushing the limits of what the panel can handle.


Backlight driver FAQ

No questions yet


DP2LVDS FAQ

Can this drive panel X?

Check the panel datasheet. If it uses LVDS interface with 2 or 4 channels, then the answer is yes.

Can ZWS provide cables for panel X?

It depends. There are a few common pinouts, so if it is similar to cables that we already have in-stock, then yes. Otherwise, making custom cables is probably more expensive than it is worth.

ZisWorks Blog

05 September 2017

Read the making-of story making-of story here to see some of the milestones and decisions during development of the x28/x39 electronics. :)

03 September 2017

The LinusTechTips video is now live :)

03 September 2017

All support has been moved to the x28/x39 user group.

20 August 2017

I've been doing an ask-me-anything at reddit.

18 August 2017

The site has been updated with various improvements, with new product listings, renders, and descriptions. The store is now linked ot the main site and downloads section for documentation now exists. Despite the bare website and LTT video not yet being public, sales for the first day have been strong and totaled around $7400. Most interest has been in the 39" upgrade kits.

17 August 2017

In anticipation for the LTT and blurbusters reviews, the store has gone live.

About Us

ZisWorks is a family design house of two CMU ECE/SCS masters graduates. We are passionate about displays, embedded design, gaming hardware, and algorithms. Our ambition is to design the best available gaming displays.

Through the process of our product development, we are also creating and releasing useful building blocks for others designing embedded systems and prototypes. We hope that our building blocks will enable innovation in academia as well as be useful for prototyping purposes.
